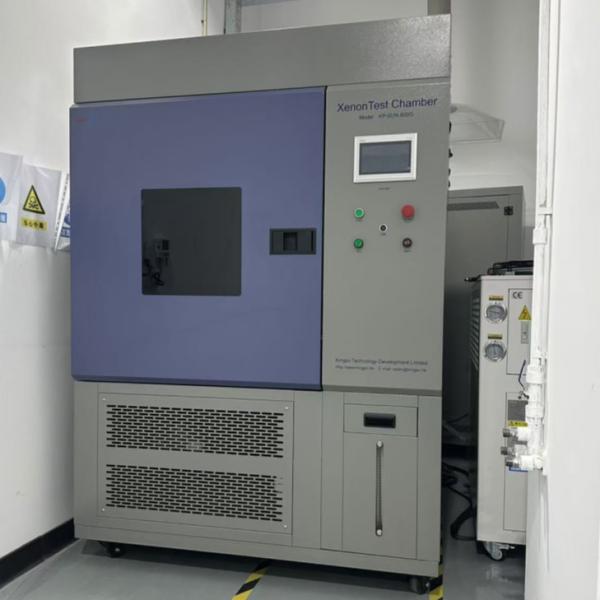

    UV Radiation Test Equipment , Xenon Test Chamber Long Lamp Life 1200h

    Ask Lasest Price
    Brand Name : KingPo
    Model Number : KP-SUN800G
    Certification : ISO17025
    Price : To be quoted
    Payment Terms : TT
    Supply Ability : 3 sets per month
    Delivery Time : 35 working days
    • Product Details
    • Company Profile

    UV Radiation Test Equipment , Xenon Test Chamber Long Lamp Life 1200h

    UV Radiation Test Equipment , Xenon Test Chamber

    IEC62368-1 Standard requirement:

    C.2 UV light conditioning test
    C.2.1 Test apparatus
    Samples are exposed to UV light by using one of the following apparatus:
    – a twin enclosed carbon-arc (see C.2.3) with continuous exposure for a minimum of 720 h.
    The test apparatus shall operate with a black-panel temperature of 63 °C ± 3 °C in a relative humidity of (50 ± 5) %; or
    – a xenon-arc (see C.2.4) with continuous exposure for a minimum of 1 000 h. The test apparatus shall operate with a 6 500 W, water-cooled xenon-arc lamp, a spectral irradiance of 0,35 W/m² at 340 nm, a black-panel temperature of 63 °C ± 3 °C in a relative humidity of (50 ± 5) %


    Specifications:

    ItemSpecification
    Internal Dimension (W*D*H)800*800*800mm(W*D*H)
    External Dimension (W*D*H)1350*1200*2050 mm(W*D*H)
    Inner chamber materialSUS 304 # Stainless Steel, Anti-rust, easy to clean
    Outer chamber materialcold plate rust proof and plastic spraying treatment
    TemperatureRT+10℃~70℃
    Temperature Uniformity±3℃
    Humidity RangeLight 20% ~ 60%RH, dark: 30% ~ 98%RH
    Irradiated intensity0.35-1.1W/m²
    lamp power6500W
    Lamp life1200h
    Blank panel temperatureLight 60℃ ~ 100℃, dark 40 ~ 70℃
    Temperature sensorPT100 high precision temperature sensor
    Control systemPLC controller
    Distance from specimen to arc center250~300mm, Effective exposure area 3760cm²
    FilterBorosilicate filter inside and outside
    Water pressure at nozzle0.12~0.15Mpa
    Nozzle diameter0.8mm
    Water supply time0-999min
    Cooling ModelCold water machine
    PowerAC380V, 60Hz.
    Safety ProtectionOver heat protection for fan,
    Over load protection for cooling system,
    Over pressure protection for cooling system,
    Over temperature protection,
    Over heat and over flow protection for water pump,
    Leakage protection, Water shortage protection,
    Auto stop after failure warning


    Calibration certificate template
